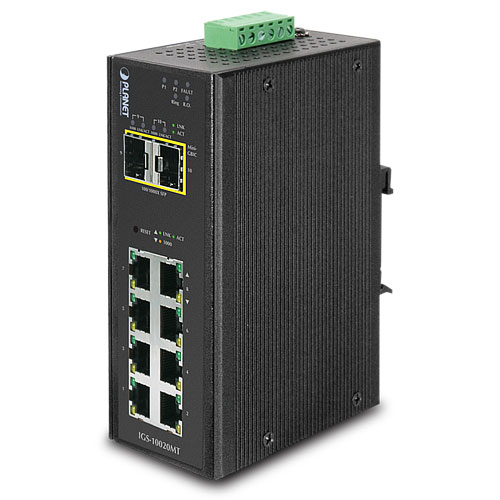

IGS-10020MT

Switch Gigabit Industriale 8-Porte rame 10/100/1000Base-T + 2-Porte con slot miniGBIC/SFP 100/1000Base-X (temperatura di esercizio: -40°C ~ 75°C)

Il modello IGS-10020MT è un switch gestito 10-Porte Full Gigabit Ethernet, progettato appositamente per costruire una dorsale Gigabit completa per la trasmissione di dati ad alta velocita in modo sicuro e affidabile all'interno di ambienti industriali esigenti e verso reti remote mediante la fibra ottica.

Codice: IGS-801T
Switch Gigabit Industrial Ethernet 8-Porte rame 10/100/1000Base-T + 2-Porte miniGBIC/SFP 100/1000Base-X

Lo switch Gigabit Ethernet IGS-10020MT è costituito da 8 porte 10/100/ 1000Base-T in rame e 2 porte ottiche 100/1000Base-X con slot SFP, contenute in robusto case IP30 con sistema di alimentazione ridondante. Oltre al supporto "Switch Fabric" fino a 20 Gbps per gestire grandi quantità di dati e comunicazioni vocali e video, il modello IGS-10020MT presenta un'interfaccia utente semplice ma avanzata per la gestione del protocollo IPv6 / IPv4 e per la commutazione a pacchetto L2 / L4. Questo switch è il miglior investimento possibile per quelle aziende che hanno bisogno di espandere o aggiornare la propria infrastruttura di rete industriale.

Piena Funzionalità di gestione IPv4 e IPv6

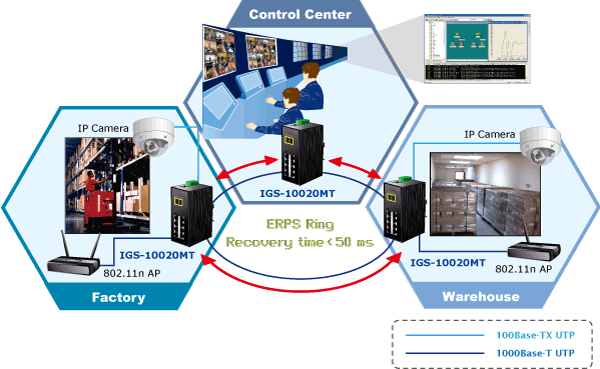

Lo switch industriale IGS-10020MT supporta la tecnologia ad anello ridondante e dispone di una forte capacità di auto-recupero per evitare interruzioni del servizio e intrusioni esterne. Incorpora inoltre la tecnologia avanzata ITU-T G.8032 ERPS (Ethernet Ring Protection Switching), il Protocollo Spanning Tree (802.1s MSTP) e un sistema di ridondanza della corrente in ingresso nella rete di automazione industriale del cliente, il tutto per potenziare l'affidabilità generale del sistema e il tempo di funzionamento in ambienti industriali molto ostici. In una rete con topologia ad anello semplice, il tempo di recupero del collegamento dati per considerarsi veloce deve essere intorno ai 20 ms.

Protezione dai fattori ambientali

Con uno chassis in alluminio e un grado di protezione industriale IP30, lo switch Gigabit EthernetIGS-10020MT fornisce un alto livello di immunità contro le interferenze elettromagnetiche e le scariche elettriche pesanti, che solitamento si possono trovare nella canaline sotto pavimento oppure nei quadri di controllo lato strada. Possiede inoltre una fonte di alimentazione integrata con un'ampia gamma di tensioni (da 12 a 48V DC o 24V AC) per applicazioni ad elevata disponibilità che necessitano doppi ingressi o backup di potenza. Lo switch industriale IGS-10020MT è in grado di operare nei range di temperatura da -40 a 75 °C, potento essere posizionato in qualsiasi ambiente climaticamente difficile.

Soluzione Flessibile ed Estendibile

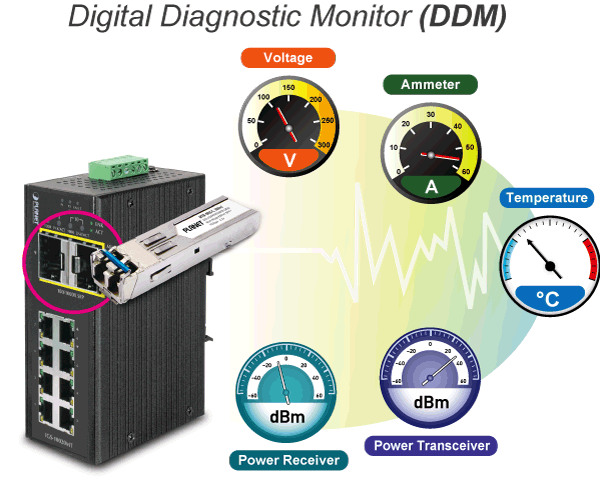

I 2 slot mini-GBIC integrati nello switch Gigabit Ethernet IGS-10020MT supportano i moduli SFP (Small Form-factor Pluggable) in fibra ottica 100Base-FX e 1000Base-SX/LX, permettendo all'amministratore della rete di poter scegliere in modo flessibile il transceiver SFP più adeguato a seconda della distanza di trasmissione o della velocità di trasmissione richiesta, per poter così estendere in modo efficiente la rete industrial ethernet. Lo switch IGS-10020MT supporta la funzione SFP-DDM (Digital Diagnostic Monitor) che permette all'amministratore di rete di monitorare in tempo reale i parametri dei moduli SFP, quali potenza ottica in uscita, potenza ottica in ingresso, temperatura, corrente di polarizzazione del laser e tensione di alimentazione del modulo SFP.

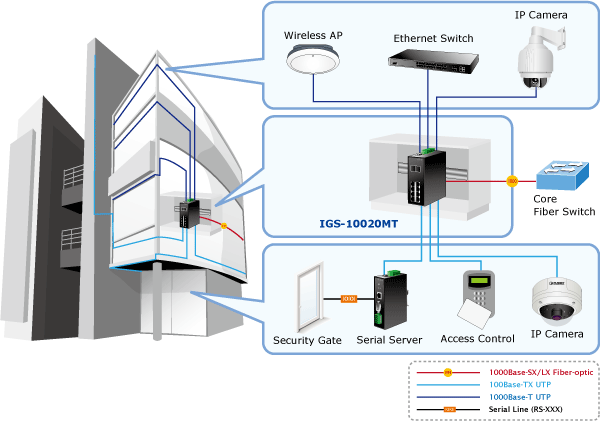

Switch gestito per raccolta e inoltro dati in aree industriali

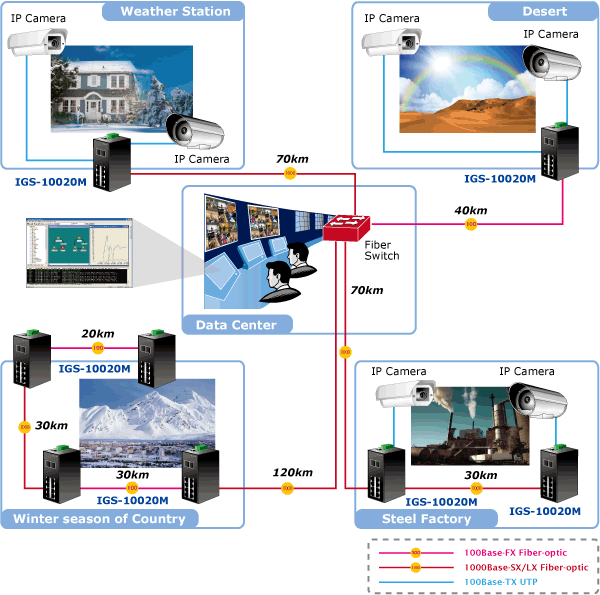

Lo Switch Gigabit Ethernet IndustrialeIGS-100MT ofrre elevate prestazioni e alta affidabilità, assicurando un funzionamento continuativo per garantire l’operatività industriale in ambienti difficili come quadri di controllo, fabbriche, catene di montaggio, all'aperto e nei luoghi in cui si possono trovare temperature estremamente basse o assai alte. Con un funzionamento non-bloccante e dimensioni compatte, l'installazione dello switch industriale IGS-100MT non presenta particolari difficoltà e permette di costruire una rete a banda larga Gigabit Ethernet in modo molto rapido.

Per espandere ulteriormente la rete attuale, lo switch industriale IGS-10020MT possiede un'interfaccia di amministrazione via WEB con pannello di gestione SNMP. La gestione dello switch IGS-10020MT via web permette di configurare in modo veloce tutte le sue funzioni indipendentemente dalla piattaforma utilizzata. Il supporto allo standard SNMP (Simple Network Management Protocol) permette allo switch gestito di essere controllato tramite qualsiasi software di gestione basato su standard SNMP. Utilizzando uno Switch Gigabit Ethernet Industriale come il modello IGS-10020MT verranno soddisfati tutti i requisiti delle applicazioni industriali, i clienti potranno godere di un'alta affidabilità operativa, di una capacità di recupero ottimale e soprattutto garantire un funzionamento continuo alla propria rete Ethernet industriale.

Lo switch per una rete d'automazione sicura

Lo switch industriale IGS-10020MT include funzionalità complete Layer 2 e Layer 4 e applica le funzioni di controllo degli accessi ACL (Access Control List). Può quindi essere utilizzato per limitare l'accesso alla rete, filtrando pacchetti in base all'indirizzo IP sorgente e di destinazione e bloccando le porte TCP/UDP utilizzate da determinate applicazioni di rete. Gli amministratori di rete possono ora costruire una rete di comunicazione aziendale ad alta sicurezza, riducendo drasticamente i tempi di realizzazione rispetto a prima e con sforzi molto ridotti.

Funzioni FTTx / MAN

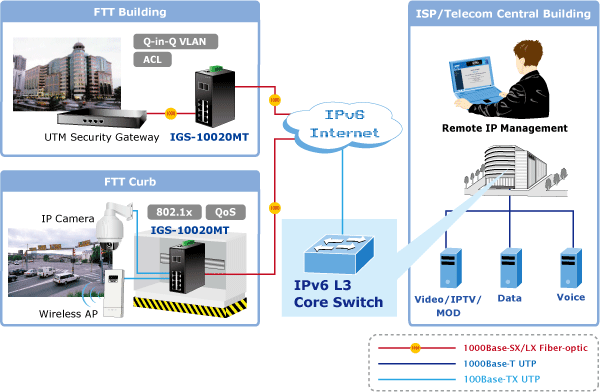

Lo Switch Gigabit Ethernet Industriale IGS-10020MTA assicura prestazioni ad alto livello per le soluzioni FTTx, al fine di costruire una soluzione di rete FTTH (Fiber to the Home) o FTTC (Fiber to the Curb) per gli ISP e FTTB (Fiber to the Building) per le imprese.

Caratteristiche Principali
  • Porte
    • 8-porte 10/100/1000Base-T RJ-45 copper
    • 2-porte 100/1000Base-X con slot mini-GBIC/SFP, SFP del tipo auto detection
  • Industrial Case / Installation
    • IP30 aluminum case protection
    • DIN-rail and wall mount design
    • Redundant Power Design
      • 12 to 48V DC, redundant power with polarity reverse protect function
      • AC 24V power adapter acceptable
    • Supports EFT protection 6000 VDC for power line
    • Supports 6000 VDC Ethernet ESD protection
    • -40 to 75 degrees C operating temperature
  • Caratteristiche Layer2
    • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
    • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
    • Storm Control support
      - Multicast / Unknown-Unicast
    • Supports VLAN
      - IEEE 802.1Q Tagged VLAN
      - Up to 255 VLANs groups, out of 4095 VLAN IDs
      - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
      - Private VLAN Edge (PVE)
      - Protocol-based VLAN
      - MAC-based VLAN
      - Voice VLAN
    • Supports Spanning Tree Protocol
      - STP, IEEE 802.1D Spanning Tree Protocol
      - RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
      - MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
      - BPDU Guard
    • Supports Link Aggregation
      - 802.3ad Link Aggregation Control Protocol (LACP)
      - Cisco ether-channel (Static Trunk)
      - Maximum 5 trunk groups, up to 10 ports per trunk group
      - Up to 20Gbps bandwidth (duplex mode)
    • Provides Port Mirror (many-to-1)
    • Port Mirroring of the incoming or outgoing traffic on a particular port
    • Supports E.R.P.S. (Ethernet Ring Protection Switching)
  • Quality of Service
    • Ingress Shaper and Egress Rate Limit per port bandwidth control
    • 8 priority queues on all switch ports
    • Traffic classification
      - IEEE 802.1p CoS
      - IP TOS / DSCP / IP Precedence
      - IP TCP/UDP port number
      - Typical network application
    • Strict priority and Weighted Round Robin (WRR) CoS policies
    • Supports QoS and In/Out bandwidth control on each port
    • Traffic-policing policies on the switch port
    • DSCP remarking
  • Multicast
    • Supports IGMP Snooping v1, v2 and v3
    • Supports MLD Snooping v1 and v2
    • Querier mode support
    • IGMP Snooping port filtering
    • MLD Snooping port filtering
    • MVR (Multicast VLAN Registration)
  • Security
    • IEEE 802.1x Port-based / MAC-based network access authentication
    • Built-in RADIUS client to co-operate with the RADIUS servers
    • TACACS+ login users access authentication
    • RADIUS / TACACS+ users access authentication
    • IP-based Access Control List (ACL)
    • MAC-based Access Control List
    • Source MAC / IP address binding
    • DHCP Snooping to filter untrusted DHCP messages
    • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
    • IP Source Guard prevents IP spoofing attacks
    • Auto DoS rule to defend DoS attack
    • IP address access management to prevent unauthorized intruder
  • Management
    • Switch Management Interfaces
      -Web switch management
      -Remote Telnet management
      -SNMP v1, v2c, and v3 switch management
      -SSH / SSL secure access
    • Four RMON groups (history, statistics, alarms, and events)
    • IPv6 IP Address / NTP / DNS management
    • Built-in Trivial File Transfer Protocol (TFTP) client
    • BOOTP and DHCP for IP address assignment
    • Firmware upload/download via HTTP / TFTP
    • DHCP Relay
    • DHCP Option 82
    • User Privilege levels control
    • NTP (Network Time Protocol)
    • Link Layer Discovery Protocol (LLDP) Protocol
    • Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
    • Reset button for system reboot or reset to factory default
    • PLANET Smart Discovery Utility for deploy management

Specifiche Tecniche
Hardware Specifications
Hardware Version 2
Copper Ports 8 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots 2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100Base-FX SFP
Switch Architecture Store-and-Forward
Switch Fabric 20Gbps / non-blocking
Throughput (packet per second) 14.8Mpps
Address Table 8K entries, automatic source address learning and ageing
Share data Buffer 512 kilobytes
Flow Control IEEE 802.3x pause frame for full-duplex. Back pressure for half-duplex
Jumbo Frame 9Kbytes
Reset Button < 5 sec: System reboot
> 5 sec: Factory Default
ESD Protection 6KV DC
EFT Protection 6KV DC
Enclosure IP30 aluminum metal case
Installation DIN rail kit and wall mount kit
Alarm One relay output for power failure.
Alarm relay current carry ability: 1A @ DC 24V
LED Indicator System:
Power 1 (Green)
Power 2 (Green)
Fault Alarm (Green)
Ring (Green)
R.O. (Green)
Per 10/100/1000T RJ-45 Ports:
Power LNK/ACT (Green)
1000 (Orange)
Per SFP Interface:
LNK/ACT (Green)
1000 (Orange)
Dimensions (W x D x H) 87.8 x 135 x 56 mm
Weight 720g
Power Requirements DC 12 to 48V. AC 24V power adapter
Power Consumption 10 watts / 34BTU (full loading)
Layer 2 function
Basic Management Interfaces Web Browser, Remote Telnet, SNMP v1, v2c
Secure Management Interface SSH, SSL, SNMP v3
Port configuration Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow Control disable / enable
Power saving mode control
Port Status Display each port’s speed duplex mode, link status, flow control status. Auto negotiation status, trunk status.
Port Mirroring TX / RX / Both
Many to 1 monitor
VLAN 802.1Q Tagged based VLAN ,up to 255 VLAN groups
Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
Up to 255 VLAN groups, out of 4095 VLAN IDs
Link Aggregation IEEE 802.3ad LACP / Static Trunk
Support 5 groups of 10-Port trunk support
QoS Traffic classification based, Strict priority and WRR
8-level priority for switching
 - Port Number
 - 802.1p priority
 - 802.1Q VLAN tag
 - DSCP/TOS field in IP Packet
IGMP Snooping IGMP (v1/v2/V3) Snooping, up to 255 multicast Groups
IGMP Querier mode support
MLD Snooping MLD (v1/v2) Snooping, up to 255 multicast Groups
MLD Querier mode support
Access Control List IP-Based ACL / MAC-Based ACL
Up to 123 entries
Bandwidth Control Per port bandwidth control
 Ingress: 500Kb~80Mbps
 Egress: 64Kb~80Mbps
SNMP MIBs RFC-1213 MIB-II
IF-MIB
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1, 2, 3 and 9)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC-2933 IGMP-STD-MIB
RFC3411 SNMP-Frameworks-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Standards Compliance IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX / 100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
FRC 3810 MLD version 2
Environment
Operating Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (Non-condensing)
Storage Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
